HDPE PP Vertical Type Double Wall Corrugated Pipe And PVC Ribbed Pipe Extrusion Line

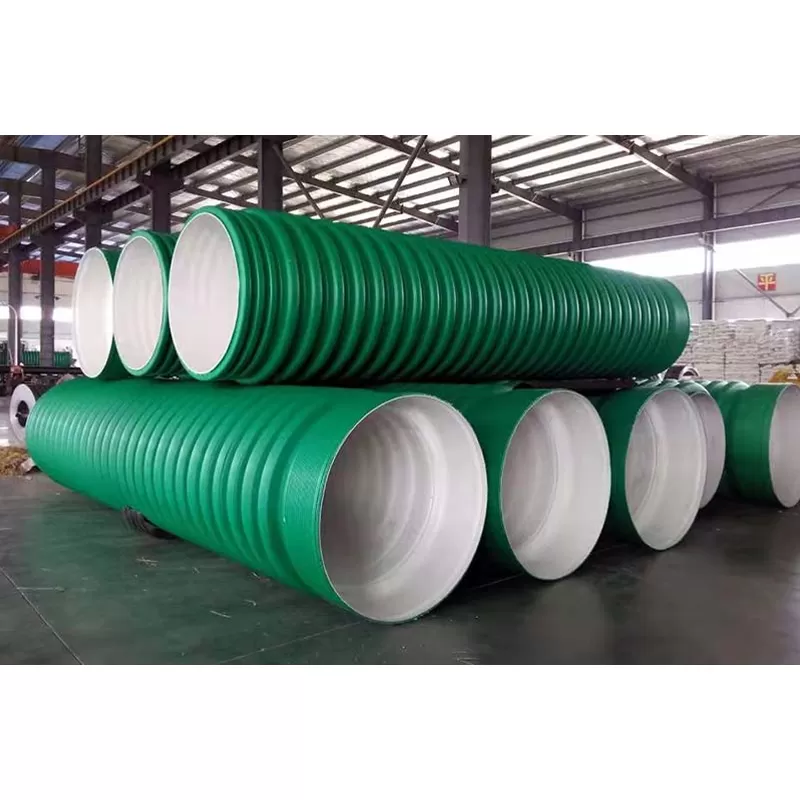

The product is mainly used in urban drainage and sewage systems. The vertical series HDPE double-wall corrugated pipe extrusion line is professionally designed and manufactured with full computer, which has the advantages of high output, stable extrusion and high degree of automation. The extruder can be specially designed according to the customer's raw material condition. HDPE adopts the new high-efficiency single screw extruder. The extruder and heads are highly accurate, the modules are interchangeable, the modules can be cooled by water or air cooling, online flaring can be achieved to ensure the performance index of the formed pipes, the circular double knife cutting machine has excellent cutting accuracy, the whole production line adopts SIEMENS PLC system, which has high self-control function.
Technical Parameter of HDPE PP Vertical Type Double Wall Corrugated Pipe And PVC Ribbed Pipe Extrusion Line
Type
Pipe Diameter(mm)
PVC Output(kg/h)
HDPE Output(kg/h)
MAX Speed (m/min)
Total power(kw)
JWSBL-600
200-600
650-800
600-800
3.5
500
JWSBL-800
200-800
1200
1000
3.0
680
JWSBL-1000
200-1000
1300
1200
2.5
710
JWSBL-1200
600-1200
1400
1400
1.0
800

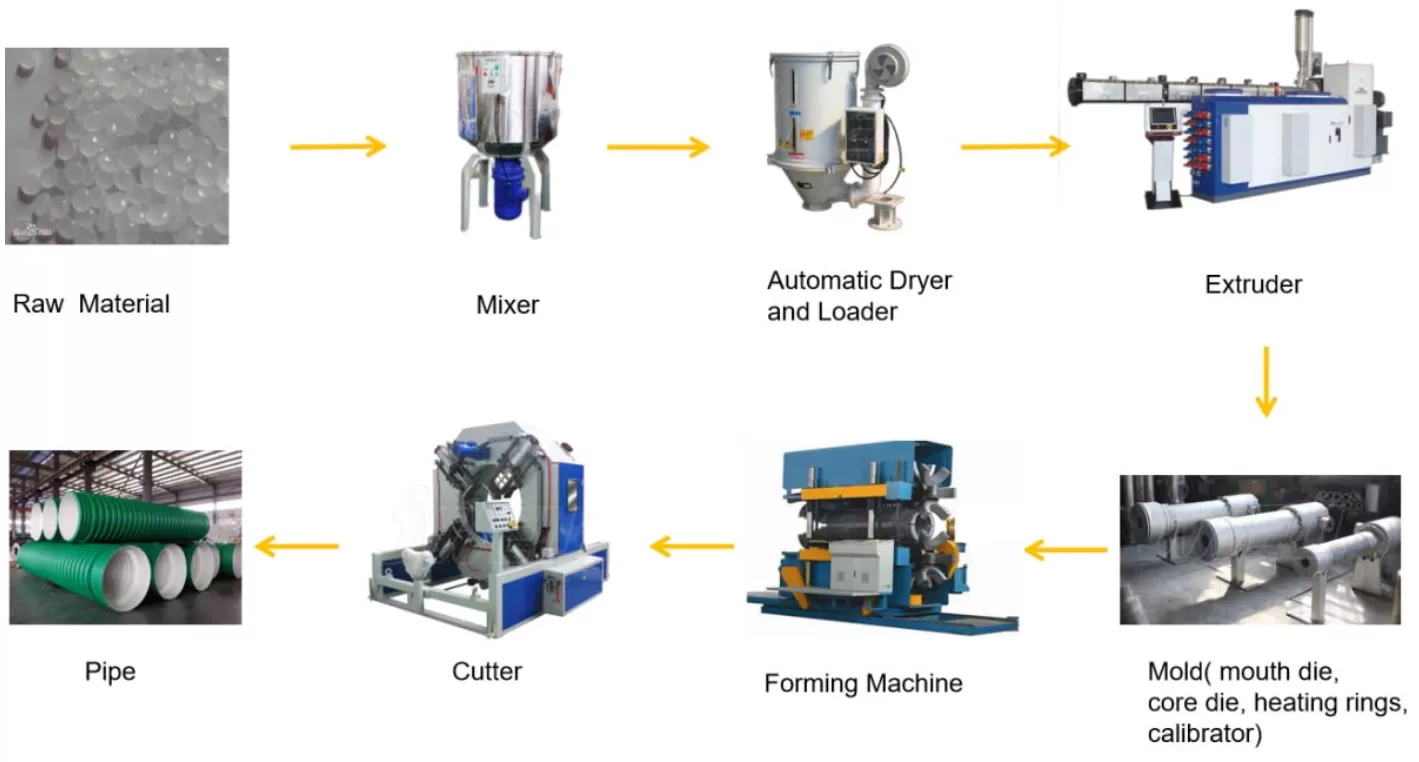

Production Process of HDPE PP Vertical Type Double Wall Corrugated Pipe And PVC Ribbed Pipe Extrusion Line
Performance and Advantages of HDPE PP Vertical Type Double Wall Corrugated Pipe And PVC Ribbed Pipe Extrusion Line

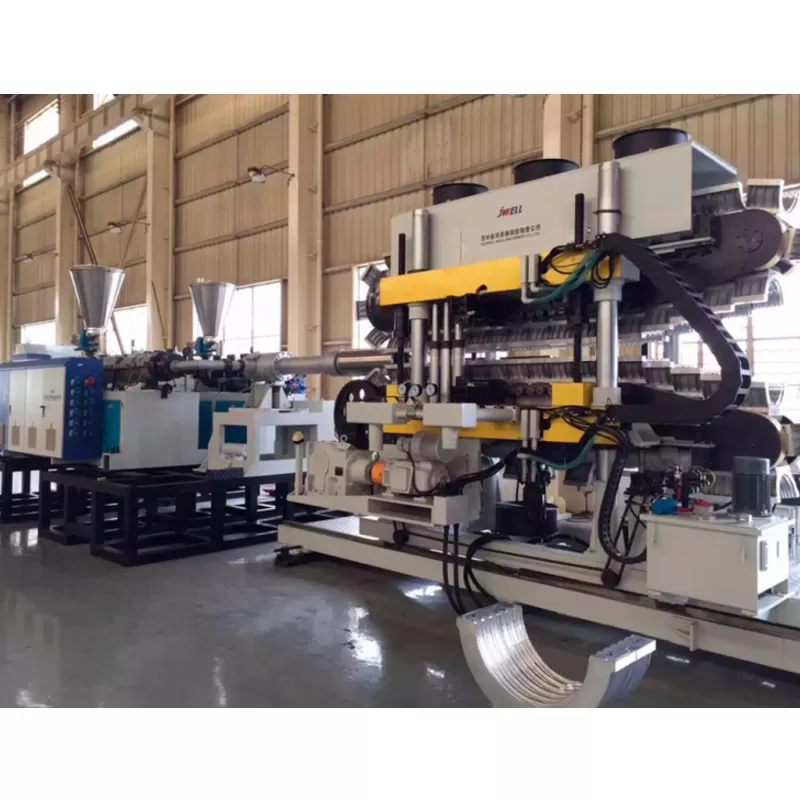

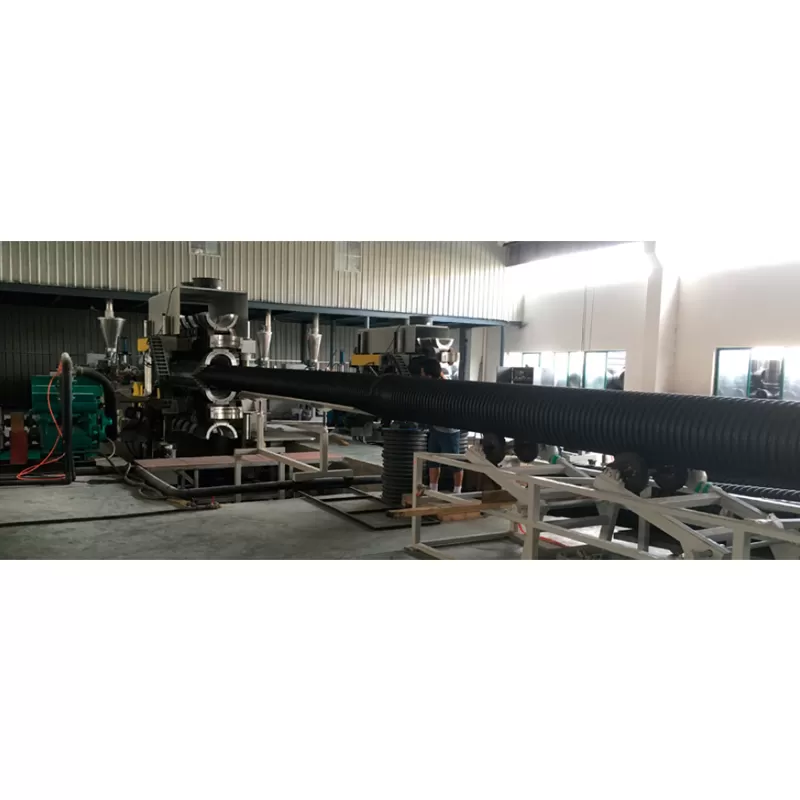

Our large-diameter single wall and double wall corrugated pipe production line is fully automatic control, running stable and high capacity. HDPE/PP material use high efficient single screw extruder, and PVC material use conical twin screw extruder or parallel twin screw extruder. Horizontal type corrugator adopt advanced shuttle-type structure, closed water cooling system, on-line belling. Whole corrugated pipe extrusion line is controlled by PLC computer.
Mini high speed single wall corrugated pipe machine can produce two diameters or three diameters single wall corrugated pipe with the same mould blocks, which reduce the cost of the mould blocks, corrugated pipe machine and extrusion line price and the changing time, also increase the efficiency.
New Corrugated Pipe Extrusion Line for Ventilation System high precision for front-back adjustment, according to air ventilation pipe, specially design for the mould. New vertical type water cooling corrugator, precisely location of mould block, easy to change the mould.

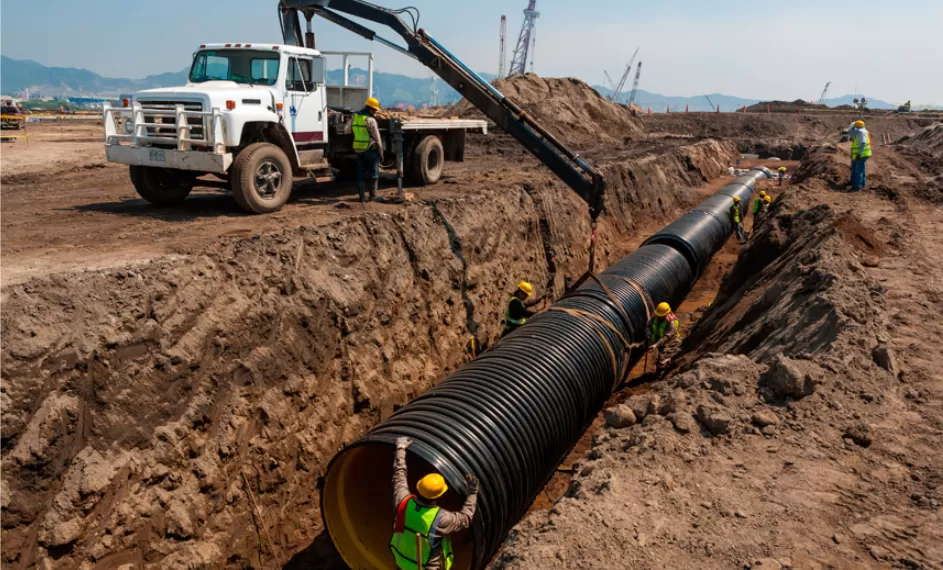

Application of HDPE PP Vertical Type Double Wall Corrugated Pipe And PVC Ribbed Pipe Extrusion Line
Mainly used in: urban drainage, sewage engineering, drainage engineering, farmland irrigation, sand control engineering, low-voltage water supply system, municipal drainage, sewage pipeline transformation, wire, cable buried jacket and other fields.
Videos of HDPE PP Vertical Type Double Wall Corrugated Pipe And PVC Ribbed Pipe Extrusion Line
Related HDPE PP Vertical Type Double Wall Corrugated Pipe And PVC Ribbed Pipe Extrusion Line
