JWZ-BM series blow-molding machine are suitable for large-scale production of milk-bottle, drink-bottle, water-bottle, hot–filling bottle, medical containers, container used for cosmetic, spices, pesticides, lubricants and computer suppliers, it is also applicable for making small plastic toys.
In order to improve the efficiency, short the time that used for bottle forming, we equip with post-cooling device, so the products have good quality. According to the requirement of the customer, we can equip with other downstream equipment, so that the line can convey the finished products and trim waste-margin automatically.

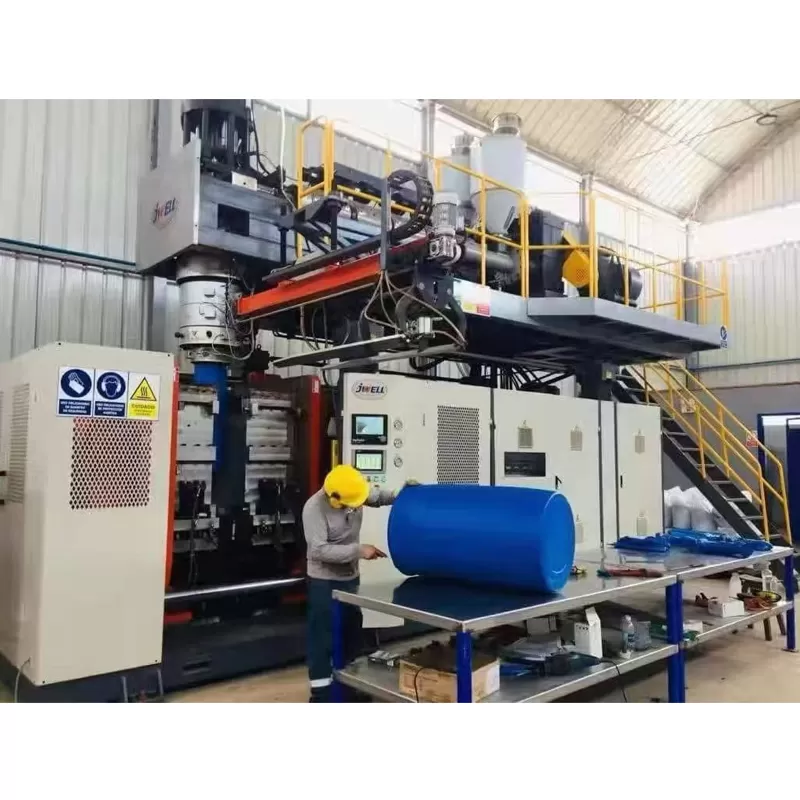

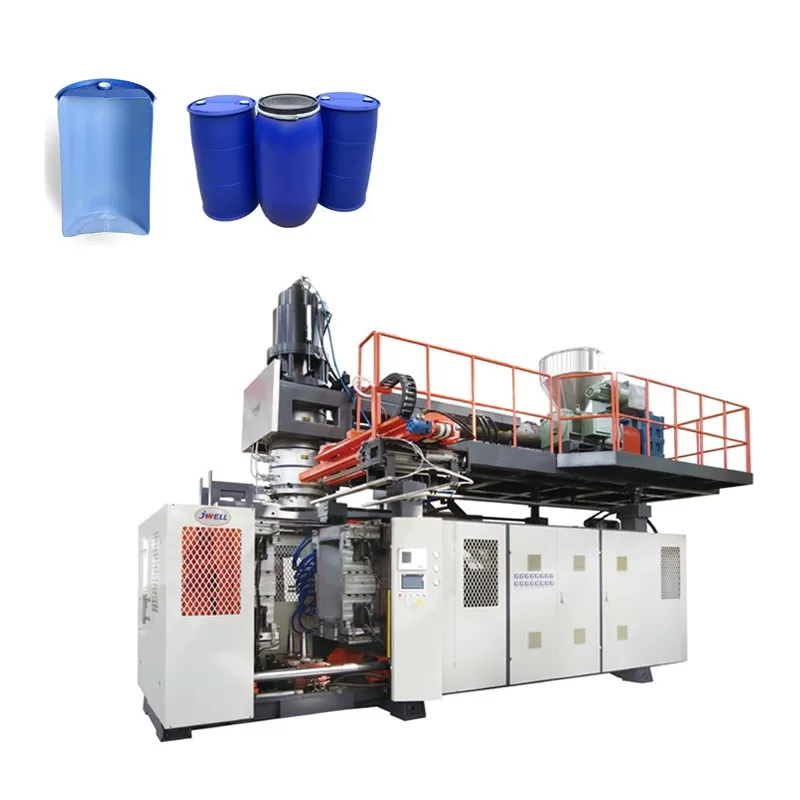

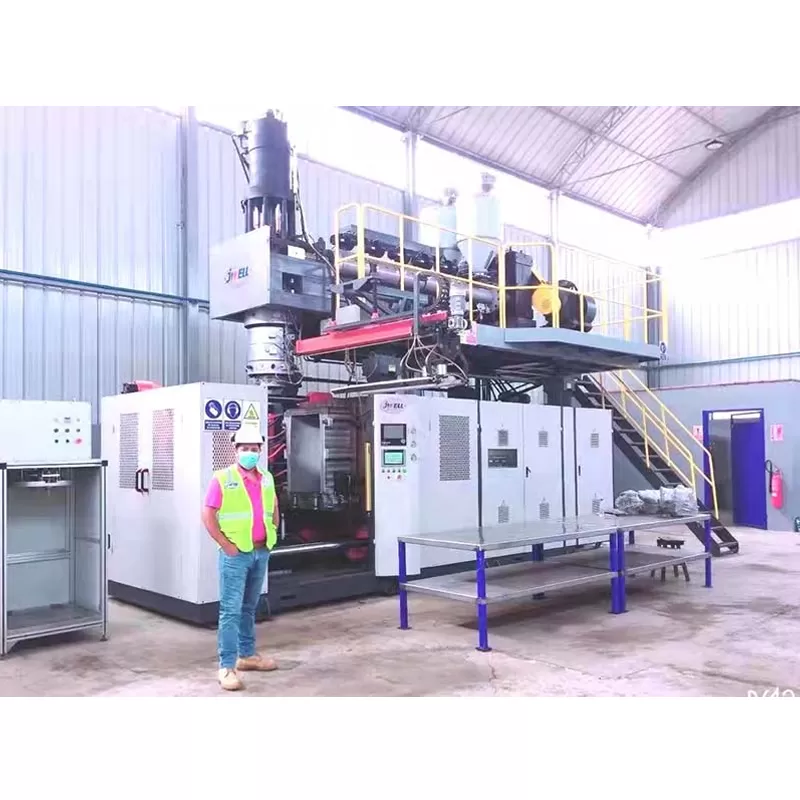

Technical Parameter of BM160/230 Plastic Blow Molding Extrusion Line
Model
Unit
BM160
BM230
Max. product volume
L
160
230
Dry cycle
Pc/h
300
280
Die head structure
Accumulating Type
Main screw diameter
mm
100
120
Max. plasticizing capacity (PE)
kg/h
240
350
Driving motor
kW
90
132
Accumulating volume
L
18
24
Oil pump motor power
kW
22
22
Clamping force
KN
800
900
Max. space between platen
mm
500-1400
800-1800
Platen size W*H
mm
1120*1200
1320*1600
Max. mould size
mm
900*1450
1200*1800
Heating power of die head
kW
30
36
Machine dimension L*W*H
m
7*3.5*4
8.2*3.5*5.5
Machine weight
T
20
36
Total power
kW
172
230
Application of BM160/230 Plastic Blow Molding Extrusion Line

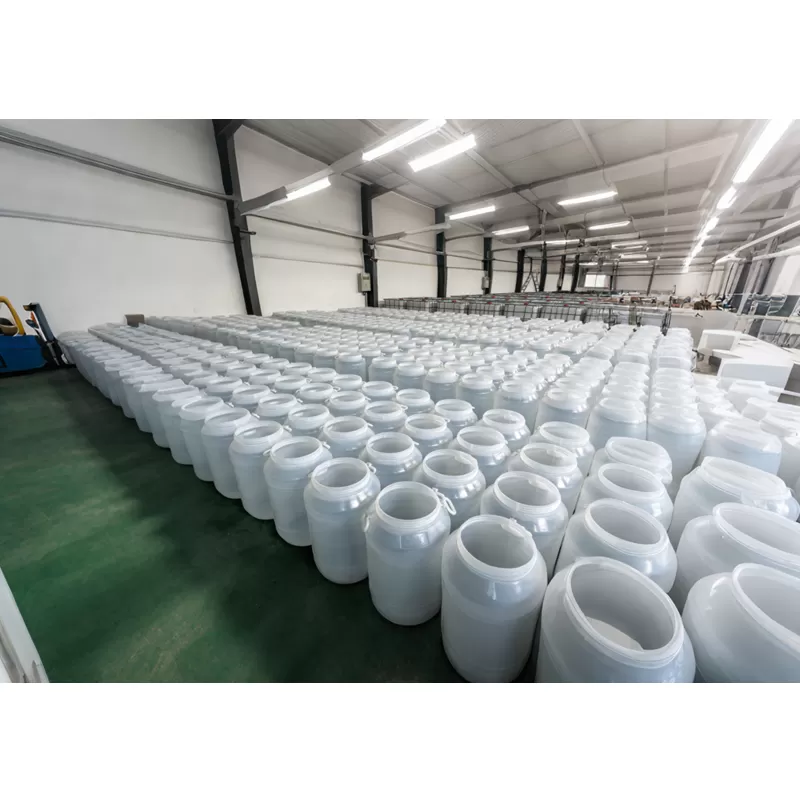

This model blow molding machine can produce 100-220L different sizes of jerrycan, drums, tank and Chemical packaging barrel, etc. Suitable for producing 100-220L open-top drums, double"L"ring drums. Adopt high output extrusion system, accumulating die head. Optional hydraulic servo control system.
Suitable for producing different kinds of the buoy.
Optional bottom sealing, product eject,core-pulling movement elements.
Adopt high output extrusion system, accumulating die head.
According to the different product sizes, customized the platen type and size.
Hydraulic Servo control system·Optional double-layer co-extrusion system.
