The PVC Floor Extrusion Line produces SPC flooring through precise extrusion, with strict control over temperature and pressure to ensure substrate strength and dimensional stability. Its UV-cured surface boosts wear, stain and aging resistance. Precision grooving guarantees tight, neat installation. Paired with high-density sound-dampening underlays, it effectively reduces noise. Each plank is rigorously inspected before sorted packaging. Eco-friendly, waterproof and easy to maintain, it perfectly fits modern home decoration.
Technical Parameter of SPC Plastic Floor Tile Extrusion Line
Model
Product width
Product thickness
Capacity
Main motor power
SJZ92/188
960-1270mm
3-8
600-800kg/h
110KW
SJZ110 / 220
960-1270mm
3-8
1000-1300kg/h
160KW
SJP115 / 28
960-1270mm
3-8
700-900kg/h
90KW
SJP135 / 31
960-1270mm
3-8
1100-1300kg/h
160KW
Description of SPC Plastic Floor Tile Extrusion Line

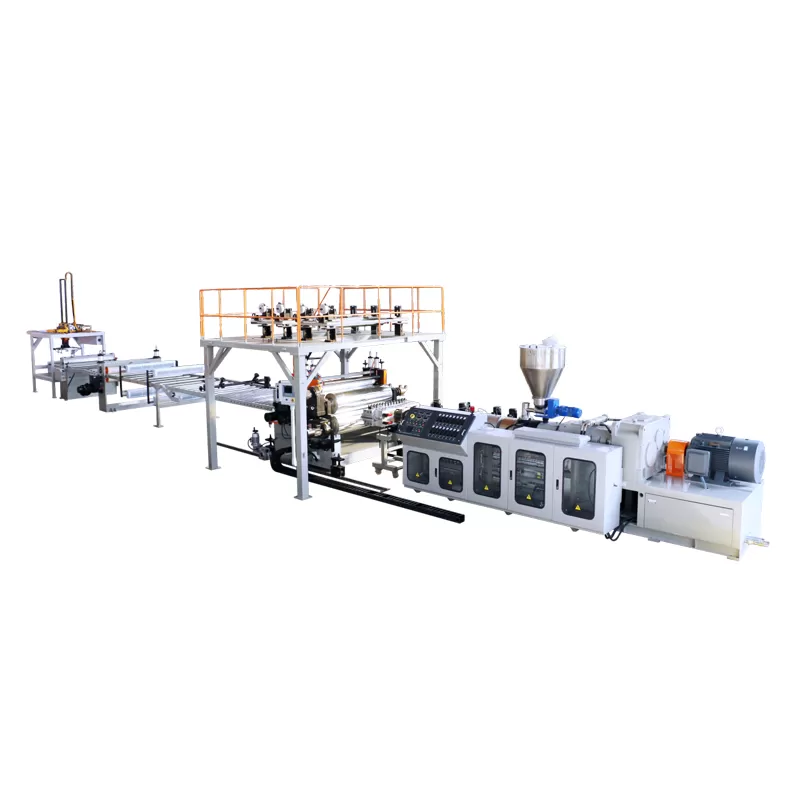

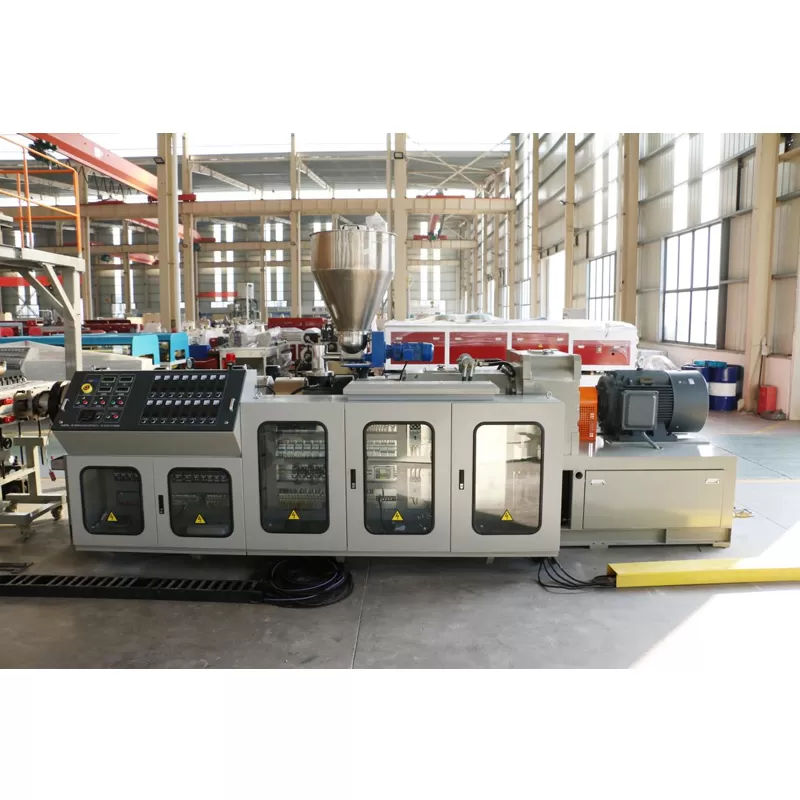

1. During operation of the PVC Floor Extrusion Line, precisely proportioned raw materials are fed into a twin-screw extruder. Under conditions of high temperature and pressure, the raw materials undergo melting and plasticization before being extruded through a die to form a continuous SPC flooring substrate. This step is critical to the flooring's strength and stability; therefore, the temperature and pressure parameters of the extruder must be strictly controlled. Following extrusion, the flooring substrate undergoes a cooling and shaping process to ensure dimensional stability and precise geometry. Once shaped, the substrate is cut into strips of specific widths and lengths.
2. The UV layer on SPC flooring serves as a vital protective coating for the surface. Beyond its role in aesthetic decoration, it plays a pivotal part in enhancing wear resistance, stain resistance, and anti-aging properties. This thin layer of UV lacquer—applied using advanced ultraviolet curing technology—elevates the flooring's surface hardness to a new level, making it significantly more durable in daily use and highly resistant to scratches and abrasion.
3. The grooving (or slotting) of SPC flooring is a process that appears simple during installation but is, in reality, a highly precise operation. The quality of the grooving directly determines the tightness of the floor joints and the overall aesthetic appeal of the installed floor. In modern home renovation, SPC flooring has gained increasing favor among consumers due to its eco-friendly nature, wear resistance, and ease of cleaning. Consequently, the grooving process—as a critical link in the flooring installation chain—is a detail that simply cannot be overlooked.
4. The combination of SPC flooring and an underlayment (silent pad) represents a significant innovation in modern home renovation. SPC flooring has already won the hearts of many households thanks to its exceptional wear resistance, waterproofing capabilities, and ease of maintenance. The addition of an underlayment serves to deepen this appreciation even further.
Typically composed of high-density foam materials, the underlayment offers excellent sound absorption and vibration-damping properties. When installed beneath SPC flooring, it effectively blocks the transmission of noise between floors, thereby creating a more tranquil living environment for residents. Whether it is the sound of footsteps, children running and jumping, or the slight shifting of furniture, these noises are significantly dampened, fostering a more harmonious atmosphere within the home.
5. Prior to the commencement of the packaging process, every single SPC flooring plank undergoes rigorous quality inspection. Only those planks that fully meet our quality standards are cleared to proceed to the packaging stage. Packaging personnel meticulously sort the flooring by specification and color, then carefully place the planks into specialized packaging cartons. Furthermore, each carton is clearly labeled with essential information—such as the product model, specifications, production date, and manufacturer details—ensuring that consumers can identify the product at a glance during both the purchasing and usage stages.
Application of SPC Plastic Floor Tile Extrusion Line

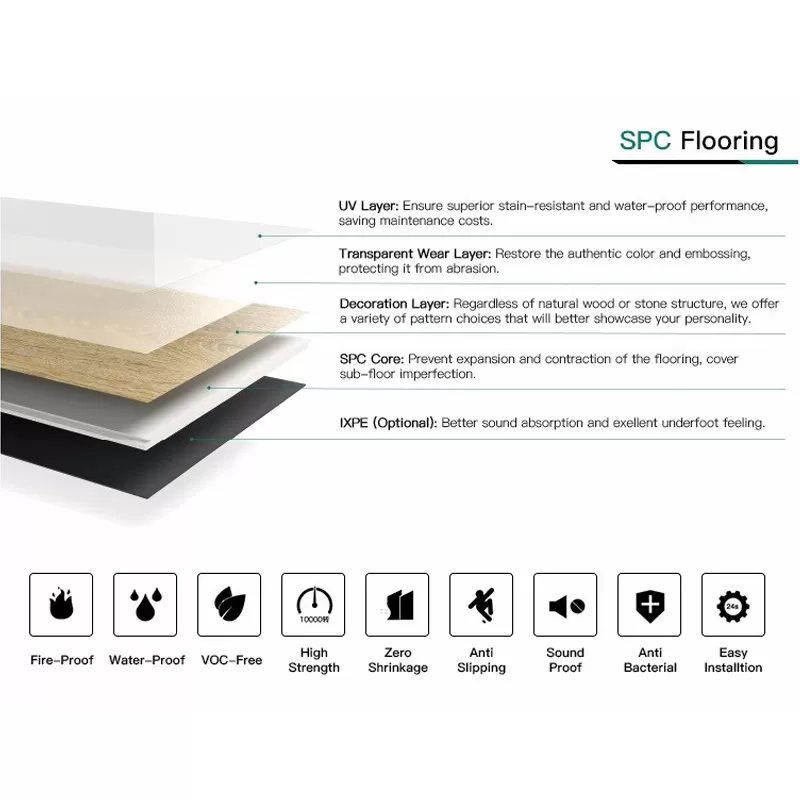

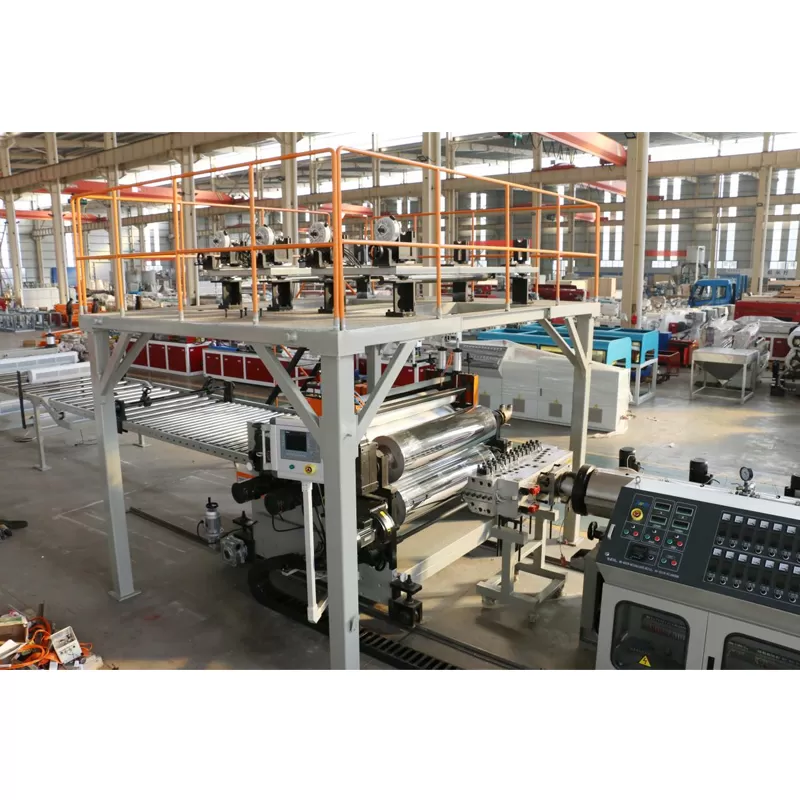

The PVC Floor Extrusion Line processes a PVC-based SPC core through a four-roll calendering system. The PVC color film, wear layer, and base membrane are then laminated by heat without using glue.
SPC composite floor production line advantage
1. Waterproof and moistureproof, it can fundamentally solve the wooden product problems like easily be rotted and dilated deformation after absorbing water or affected with wet environment. Therefore, our company’s WPC floor can be used in this kind of environment which the traditional wood product cannot.
2. Colorful, many colors are optional. There are natural wooden feeling and wooden texture, and also you can choose the color you need according to your personality.
3. Environmental protection, non- pollution, pollution-free, recycle. The products do not contain benzene and formaldehyde, it’s a environmental products, recyclability reduce useage of wood, and that is suitable for the sustainable development of national policy and it also benefits society.
Contact jwell plastic machinery specialists now to receive professional advice and customized plastic extrusion machinery solutions tailored to your production requirements.
