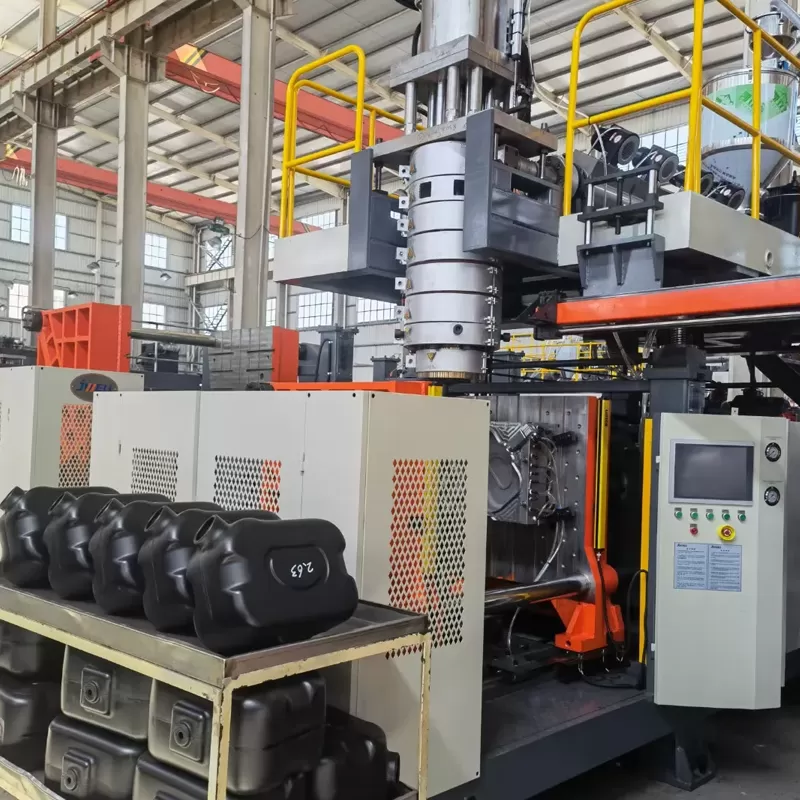

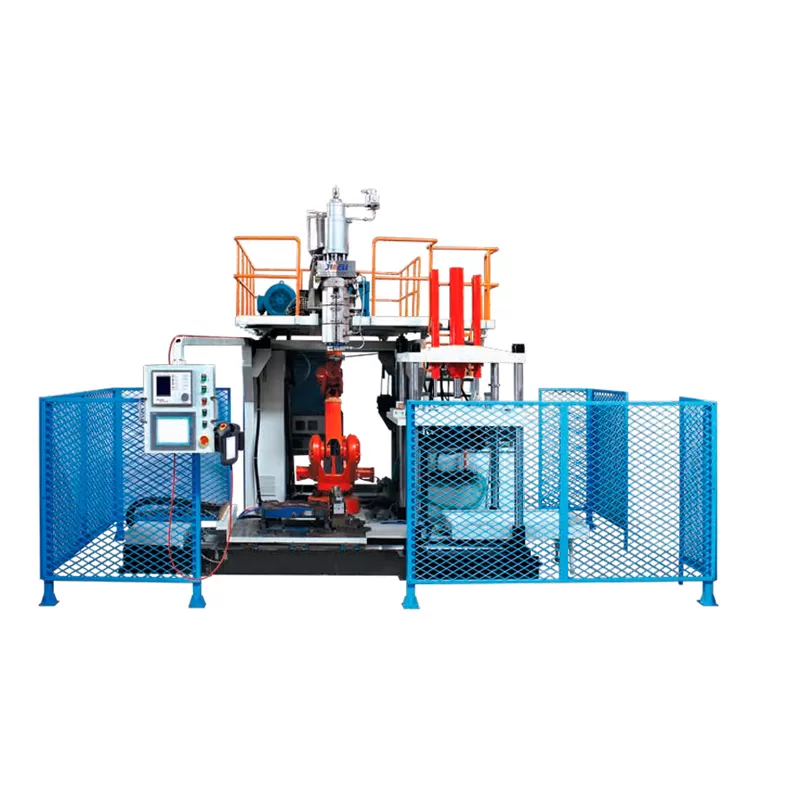

This blow molding machine specializes in manufacturing auto parts including urea tanks, bumpers, air ducts and spoilers. Equipped with high-speed extrusion, accumulating die head and hydraulic screen changer, it supports customizable platen specifications. Optional hydraulic servo control, robots and 300-point parison programming achieve stable and precise large plastic product molding.
Model | Unit | BM30 | BM50 | BM100 | BM160 |
Max product volume | L | 30 | 50 | 100 | 160 |
Dry cycle | Pc/h | 600 | 450 | 360 | 300 |
Die head structure | Accumulating Type | ||||
Main screw diameter | mm | 80 | 90 | 100 | 100 |
Max. plasticizing capacity (PE) | kg/h | 120 | 180 | 190 | 240 |
Driving motor | kw | 37 | 45 | 55 | 90 |
Accumulating volume | L | 4/5.2 | 6.2 | 12.8 | 18 |
Oil pump motor power | kw | 15 | 18.5 | 22 | 22 |
Clamping force | KN | 280 | 400 | 600 | 800 |
Max. space between platen | mm | 350-800 | 450-1200 | 500-1300 | 500-1400 |
Platen size W*H | mm | 740*580 | 880*750 | 1020*1000 | 1120*1200 |
Max. mould size | mm | 550*650 | 700*850 | 800*1200 | 900*1450 |
Heating power of die head | kw | 20 | 28 | 30 | 30 |
Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 | 7*3.5*4 |
Machine weight | T | 12 | 13.5 | 16 | 20 |
Total power | kw | 95 | 110 | 135 | 172 |
This blow molding machine is suitable for the production of various specifications of automobile urea boxes, tool boxes, automobile seats, air ducts, deflectors, bumpers, automobile tail wings, etc. All series of this models adopt high speed production, accumulating die head, hydraulic screen exchanger system, optional hydraulic servo control system, B&R Austria human-machine interface and parison programmer, can adjust within 300 points.
Suitable for producing different kinds of car urea box, tool box, automotive seat, auto air duct, auto flow board, bumper and car spoilers.
Adopt high output extrusion system,accumulating die head.
According to the different material, optional JW-DB single station hydraulic screen-exchanger system.
According to the different product size, customized the platen type and size.
Optinal hydraulic servo control system.
Optinal bottom sealing,take-out robot.
This blow molding machine is suitable for the production of various specifications of automobile products, such as intake air pipe, exhausting pipe, oil pipe, tool box, automobile seats, air ducts, deflectors, bumpers and automobile tail wings, etc.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established as a plastic extrusion machinery manufacturer and began the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
