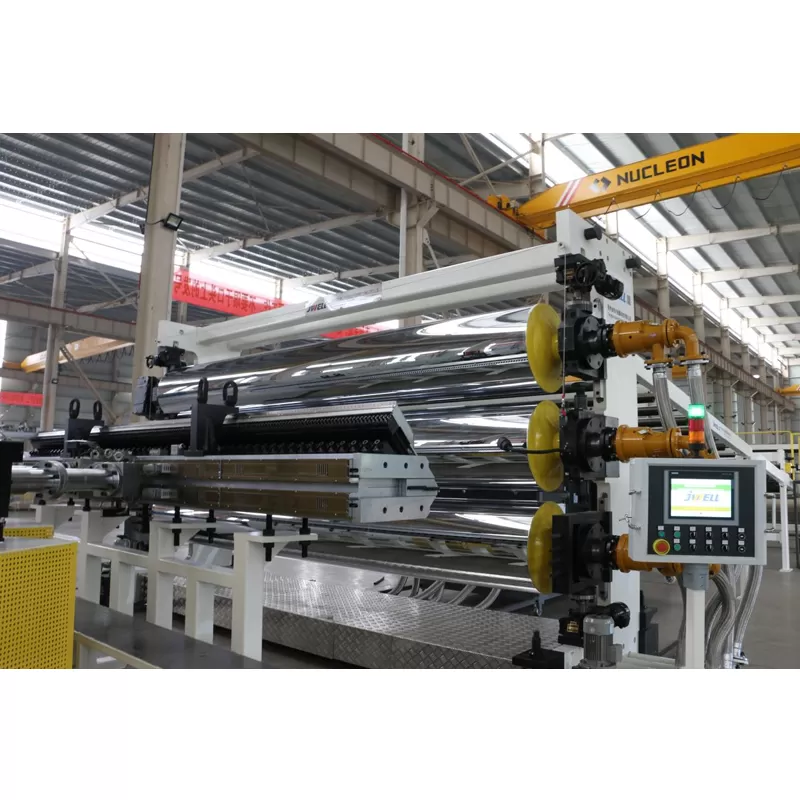

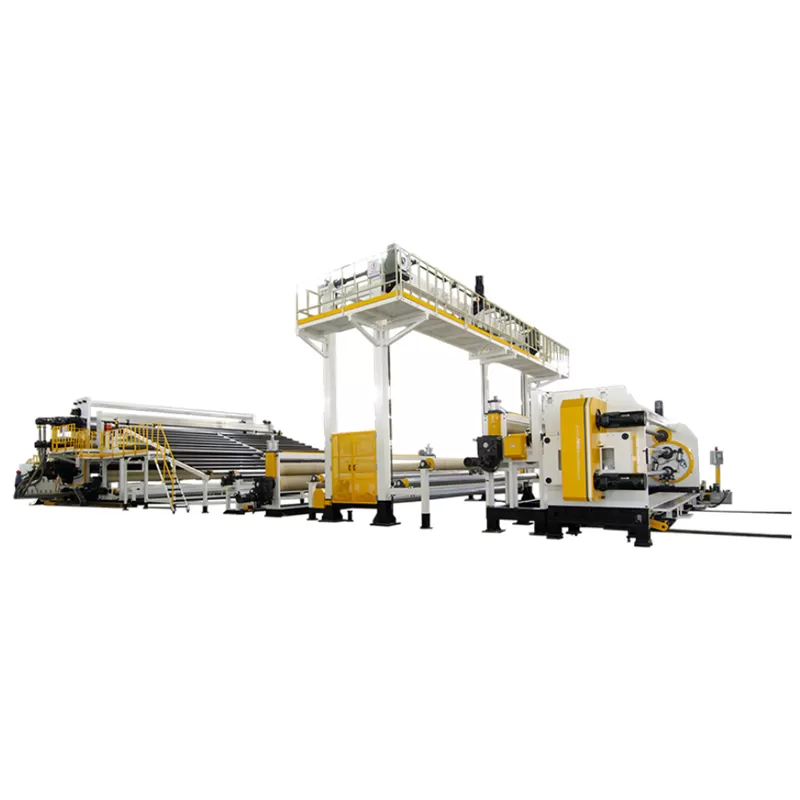

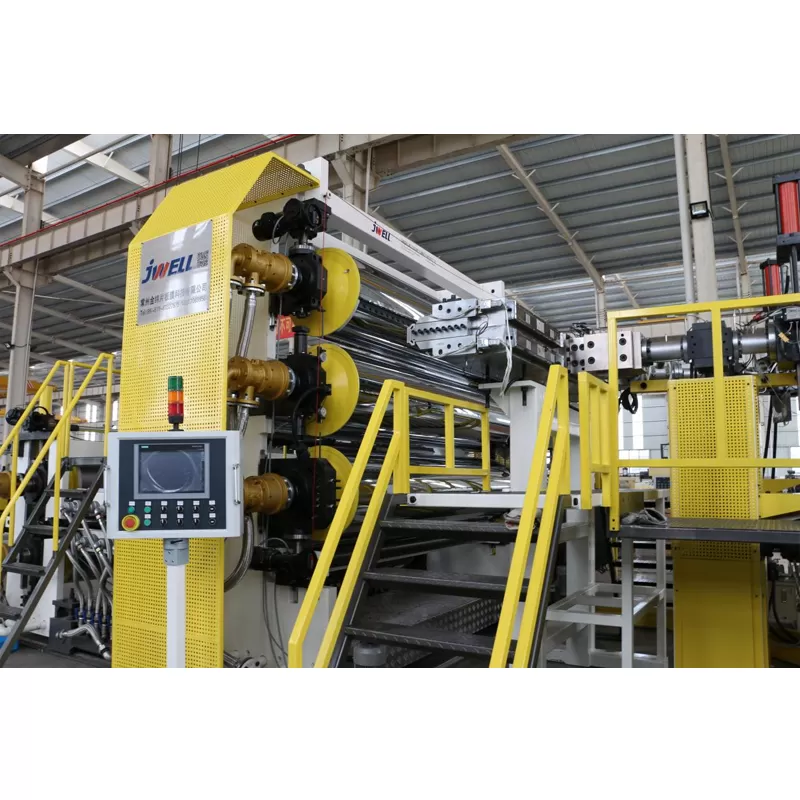

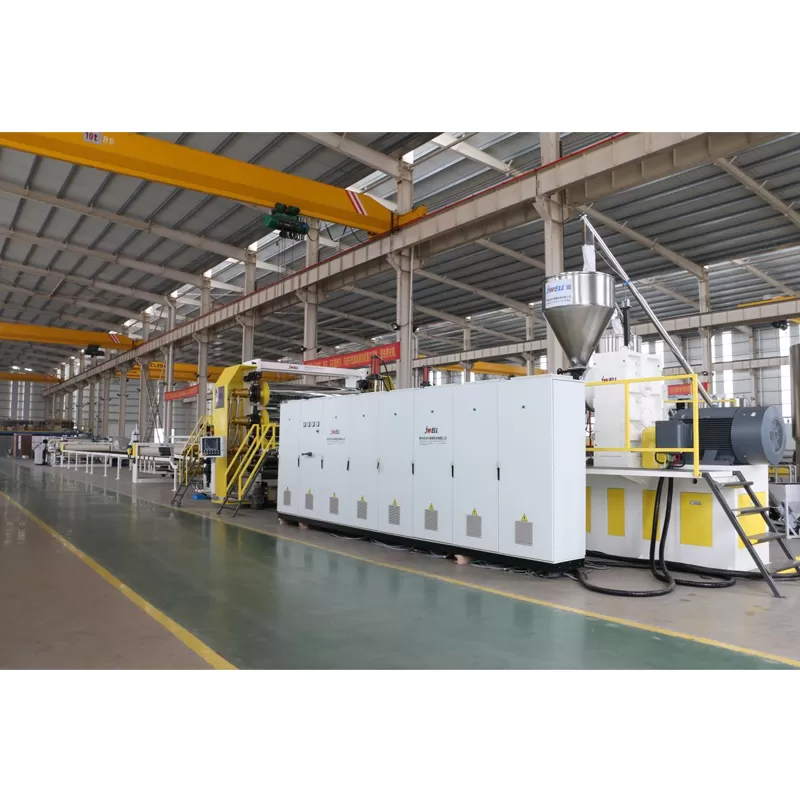

The PE extra-width geomembrane extrusion line manufactures three-layer composite anti-seepage membranes. It consists of three extruders, hydraulic screen changer, composite die, air ring, tractor and PLC control system. With optimized extruder and die, polished rollers, dual-station unwinding and friction winding, it ensures uniform extrusion, smooth film surface, stable tension and neat winding.
Technical parameter of TPO, PVC, EVA, HDPE Waterproof Sheet Extrusion Line
| Model | JWP130/26+JNP130/26-2400 | JWE75/36+JWE6536-3400 |
|---|---|---|
| Product structure | PVC+Reinforcement layer(Net)+PVC | TPO+Reinforcement layer(Net)+TPO |
| Products width | 2200mm | 3200mm |
| Products thickness | 0.5-3mm | 0.8-3mm |
| Extruder model | JWP130/26 | JWE75/36, WE65/36 |
| Designed capacity | 1500Kg/h | 1200Kg/h |
Technical parameter of 9 Meter Geomembrane Extrusion Line
| Model | JW150-4000 (non-woven fabric-PE-non-woven fabric) | JW200-9000 (Non-woven fabric-PE-non-woven fabric) |
|---|---|---|
| Products width | 4000mm | 9000mm |
| Products thickness | 0.8-3mm | 1-3mm |
| Extruder model | JWS150/33 | JWS200/33 |
| Capacity | 700kg/h | 1200kg/h |

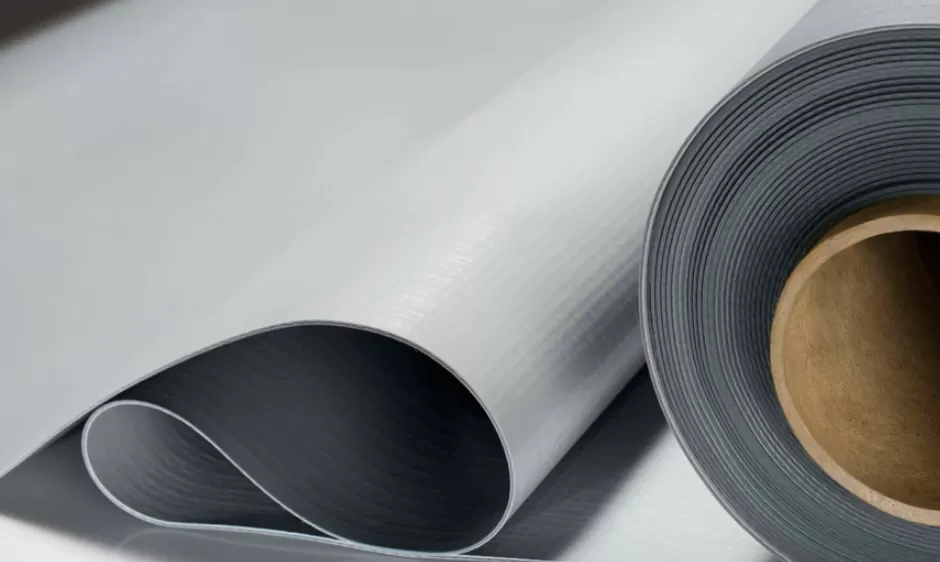

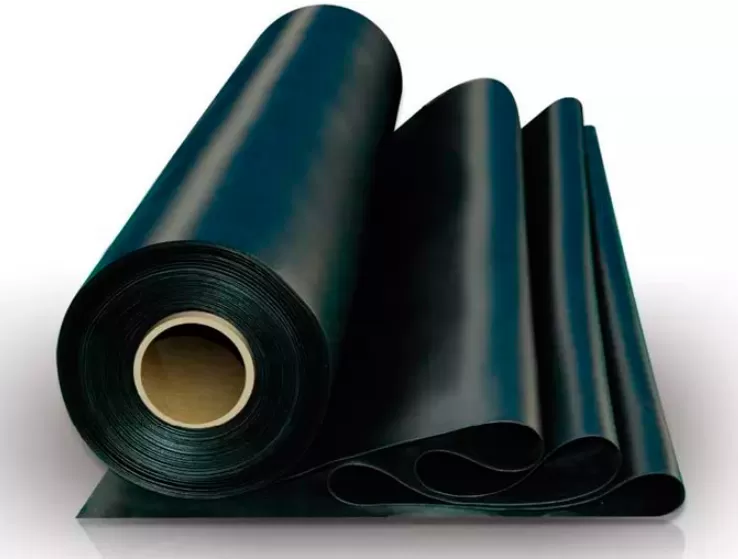

Waterproofing membrane sheet and film are widely used in waterproof engineering of basement, construction site, reservoir, dam, highway tunnel, railway tunnel, air raid shelter, grain depot, garbage plant and other buildings.
Also could be used on landfill foundation sealing and anti-seepage and closure, biological and geothermal renewable energy facilities, oil and gas industry, industrial water and wastewater, tunnel construction, reservoir dam anti-seepage, building leakage protection, pool, swimming pool lining pads etc.It can also manufacture membrane liners with rough spots on the surface.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established as a plastic extrusion machinery manufacturer and began the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
