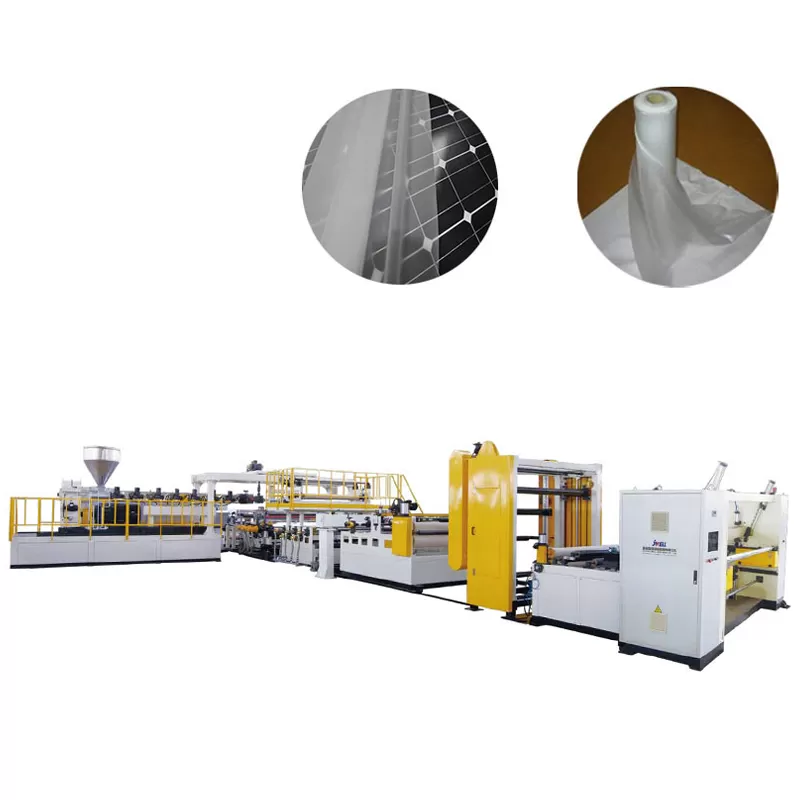

Automatic gravimetric feeding system guarantees variety of solid, liquid additives and raw materials high-precision feeding. Low-temperature extrusion system to ensure adequate mixing in the stable of plasticizing to prevent additives cross-linking. Special design of casting process gives the good solution to roller adhesion. Professional online tempering device to get rid of inner stress. The tension control system of the EVA Film Extrusion Line ensures stable sheet conveying during the cooling, pulling, and winding processes. The online thickness measurement and defect inspection system provides real-time feedback on the production quality of EVA and POE solar films.
Technical Parameter of EVA, POE Photovoltaic Film Extrusion Line
Model
Extruder type
Products thickness(mm)
Max. output
Single extrusion
JWS160
0.2-1.0
300-450
Co-extrusion
JWS160+WS180
0.2-1.0
750-850
Co-extrusion
JWS180+WS180
0.2-1.0
800-1000
Co-extrusion
JWS180+WS200
0.2-1.0
900-1100
Features of EVA POE Photovoltaic Solar Film Extrusion Line

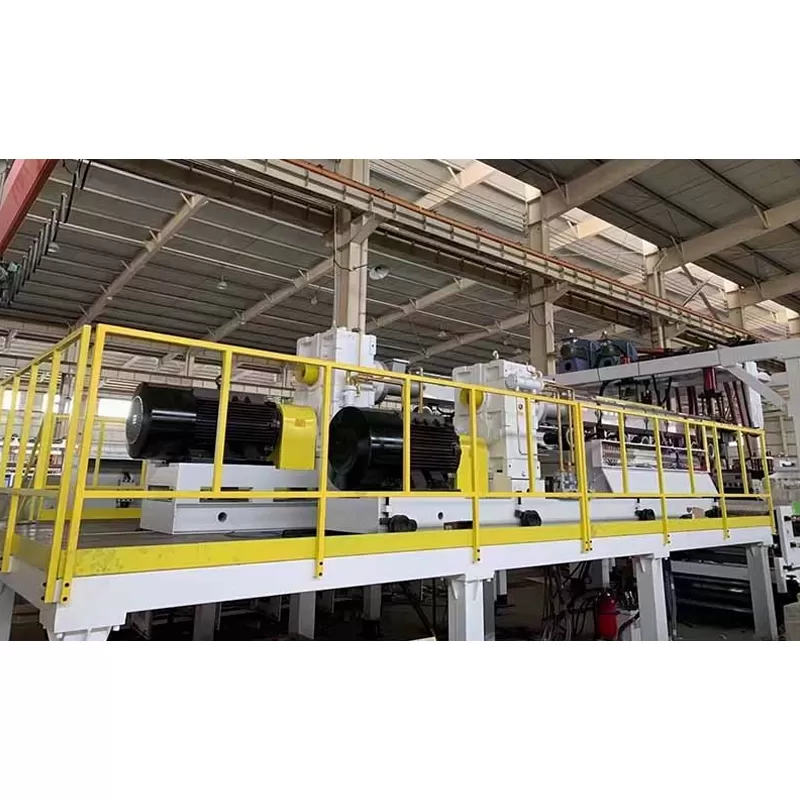

China Jwell eva film extrusion line adopts single screw extrusion for EVA and single screw extrusion for POE. The screw and barrel constant temperature circulating water cooling system solves the technical problems of EVA/POE plasticization and non-crosslinking.
The roller body adopts double-sided embossing, which solves the technical difficulty of film sticking to the roller.
The cooling part adopts cooling roller and stress-relieving cooling bed, so that the film runs smoothly, the molding is sufficient, and the shrinkage rate is guaranteed to be less than 3%.
The whole line of EVA film extrusion line adopts PLC automatic control to realize man-machine interface operation.
As an EVA film extrusion line manufacturer, Jwell is equipped with an online quality monitoring system to ensure product qualification rate.
Patented design micro tension winder, the line speed of the whole machine can reach 18m/min.

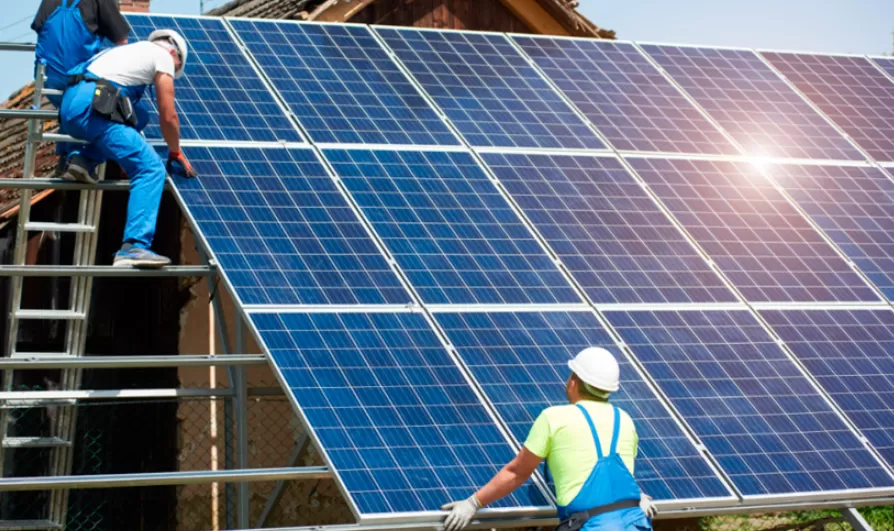

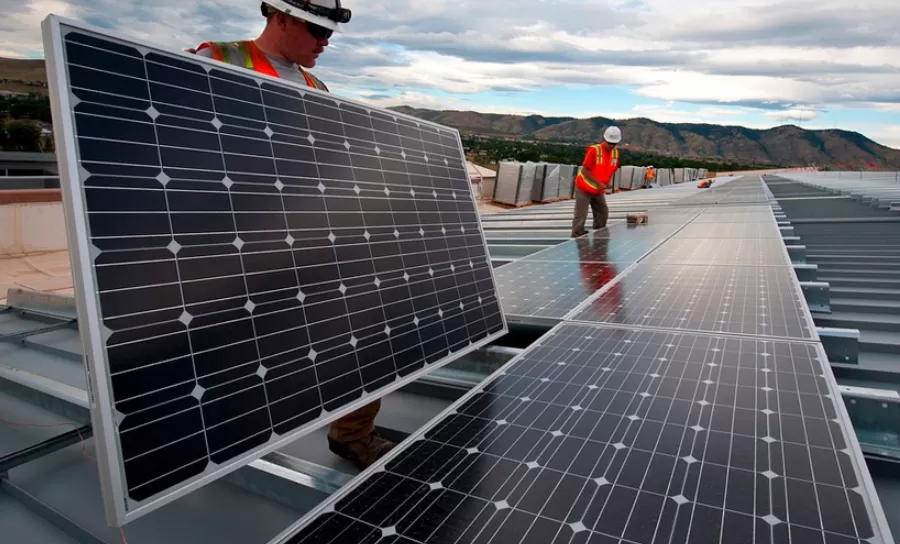

Application of EVA POE Photovoltaic Solar Film Extrusion Line

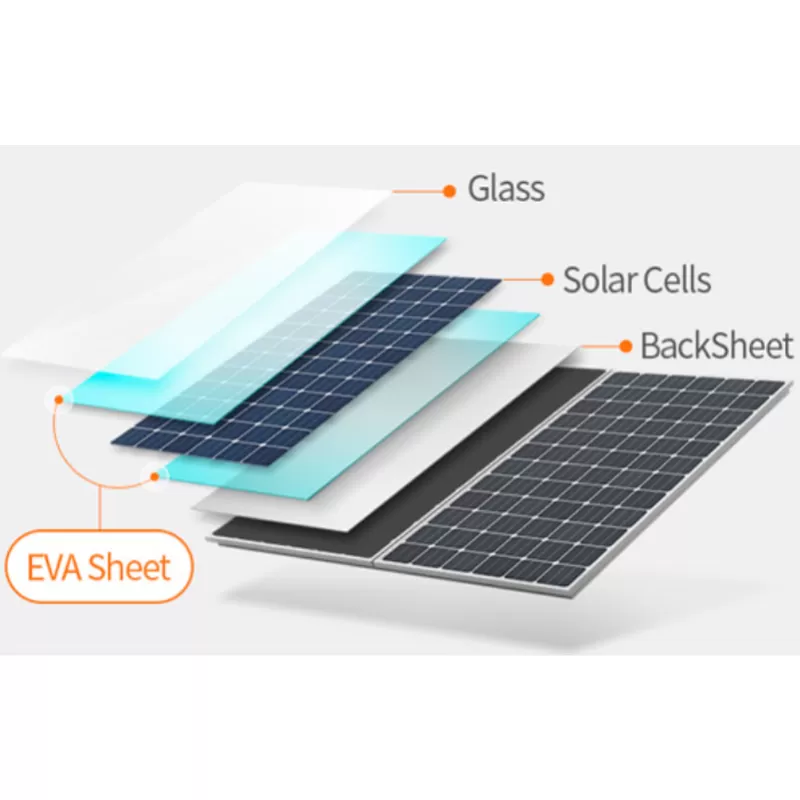

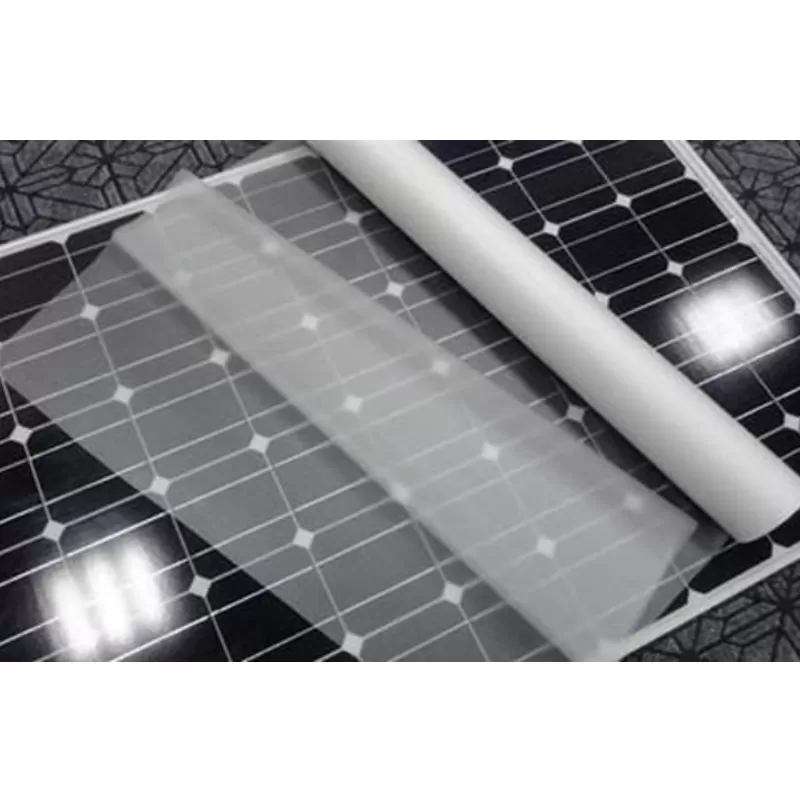

EVA film is produced from EVA resin and various modifying additives, which are fully mixed, heated, cast, and extruded through the EVA Film Extrusion Line. The cured EVA can withstand atmospheric changes and has elasticity. After bonding with the glass, it can improve the transmittance of the glass, play a role in enhancing the transmittance and gain the output of the solar cell module. Therefore, it is an ideal packaging material for solar cell modules and glass.
