PVB glass film is often used for automotive laminated glass, bullet proof glass, sound proof glass, photovoltaic glass, color glass, etc. In addition to safety performance, it also has excellent anti ultraviolet, sound insulation, light control, heat preservation, heat insulation, shock resistance and other properties. It is an ideal safety glass composite material.

The shear mode of ionic film SGP is more than 50 times than PVB, the tear strength is 5 times than PVB, and the bearing capacity is 2 times than PVB laminated glass. Under the same load and thickness, the bending of SGP laminated glass is only 1/4 of PVB laminated glass. Compared with the laminated glass produced by PVB, the performance of laminated glass produced by SGP film is more superior.

Contact Us

Technical parameter of PVB Glass Adhesive Film Extrusion Line


Model

Products width(mm)

Design max capacity (kg/h)

JWS150

2000-2600

400-500

JWE95

2000-2800

450-600

JWE120

2400-3600

1000-1200

JWE135

2400-3800

1200-1500

JWE95+JWE65

2000-3200

600-700



Technical parameter of SGP Glass Adhesive Film Extrusion Line

Model

Products width(mm)

Products thickness (mm)

Design max capacity (kg/h)

JWE85

1400-2300

0.76-2.28

400-500

JWE95

2400-3800

0.76-2.28

500-600


Application of PVB, SGP Glass Inter-layer Film Extrusion Line

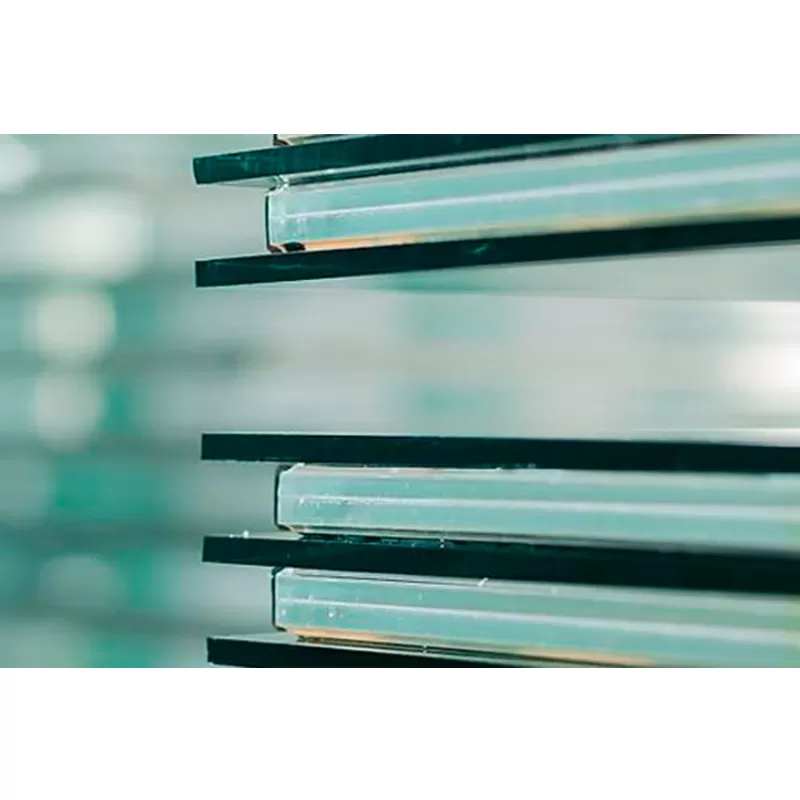

PVB/SGP/EVA film is a thermo-plastic film made of PVB/SGP resin and plasticizer. It is widely used for interlayer of construction glass, automobile, solar photovoltaic glass, bullet-proof glass, sound proof glass, etc. Features high safety, sound proof, ultravio let-proof, and can be colorful or super transparent, and used for construction wall glass for more than 70 years. Also it is of Optical application value, and solar photovoltaic as well.

There are two types of production method: by roller forming and water cooling forming, the thickness of final product will be 0.38-1.52mm, width will be 500-3400mm, transparent, color strip and full color film are optional.

PVB and SGP film are widely used on automotive window glass, ceiling glass, structural glass building, glass plank road, high-rise exterior wall, glass curtain wall, etc.


Application of PVB, SGP Glass Inter-layer Film Extrusion Line


Application of PVB, SGP Glass Inter-layer Film Extrusion Line
